The BMW R80 / 90/100 mono Shock is a bike with enormous potential for a cool Cafe Racer and/or Brat bike. That’s why we designed a new and unique subframe. Plug and play!

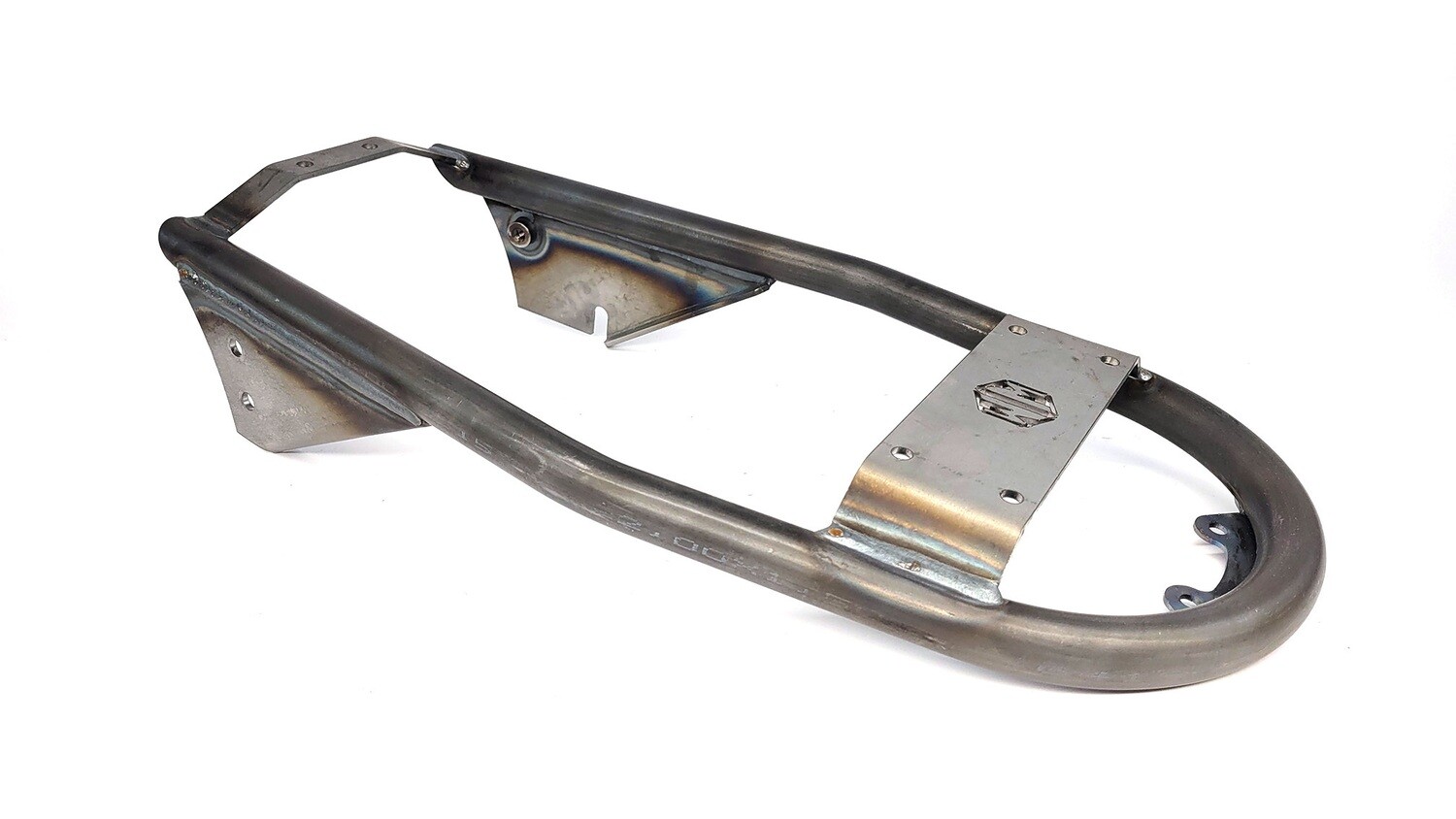

This subframe is made out of steel, a combination of laser-cut plates and bushings (s235) and chromoly tubing (25crmo4). Our frames are MIG welded in a welding jig, so every frame is exactly the same! The quality is really good and it will bolt on in a minute!
This subframe was designed to fit several seats from Motorcycles United such as: 69-0015, 69-0016, 69-0017, 69-0018, 69-0019, 69-0020, 69-0021, 69-0022, 69-0024, 69-0025, 69-0036, 69-0042, 69-0043, 69-0044, 69-0049, 69-0056, 69-0065, 69-0067, 69-0077, 69-0088, 69-0095 of 69-0097. https://www.caferacerwebshop.com/nl/tuck-n-roll-ca…
Please check below if the frame will fit your bike!
WiMoto Subframes BMW
artikel
benaming
Type
Toevoeging
bouwjaar
21-0013
Monoshock 1.0
R65
RT mono
85-88
21-0079
Bobber weld-on
R65
mono
85-93
R80
mono
84-85
R80
R
91-94
R80
ST
82-84
R100
RS mono
86-89
R100
RT mono
87-94
21-0010
Twin shock
R80
T
81
21-0035
Brat
R80
RT
81-84
21-0041
Bobber 2.0
R90
S
73-76
21-0079
Bobber weld-on
R100
80-84
21-0086
Brat 2-step
R100
RS
76-85
21-0137
Bobber 2.5
R100
RT
78-93
R100
S
76-80
R100
T
78-80
21-0060
Monoshock 2.0
R65
GS
87
21-0079
Bobber weld-on
R80
GS
80-94
R100
GS
87-96
R100
R
91-94
R100
RS
90-93
Beware of Chinese copies. Our frames, the original ones, are made in the Netherlands and are constructed of high quality steel. We noticed that we are being copied. Please be aware that these frame are not the same quality!
